Kyoritsu Indonesia - Kyoritsu Loggers/PQA

Kyoritsu KEW 5010, KEW 5020, KEW 6305, KEW 6315, KEW 5050, KEW 2060BT

Loggers

https://www.kew-ltd.co.jp/files/product_photo/5010.png
KEW 5010

3 channel inputs for the simultaneous recording of Leakage Current and Load Current
• Large capacity for storing 60,000 data points
• Lowpass Filter will filter out the harmonics
• LED flickers when the preset current value is exceeded
• CALL:Confirmation of recorded data
• Selection of One-time mode or Endless mode
• Non Volatile Memory
• Battery power indicator
• The userfriendly PC software "KEW LOG Soft 2" is supplied
• Continuous measuring time:Approx. 10 days (Alkaline Battery)

TRUE RMS USB External

KEW 5020
KEW 5020

3 channel inputs for the simultaneous recording of Leakage Current, Load Current and Voltage
• Power Quality analysis
• Large capacity for storing 60,000 data points
• Lowpass Filter will filter out the harmonics
• LED flickers when the preset current/voltage value is exceeded
• CALL:Confirmation of recorded data
• Selection of One-time mode or Endless mode
• Non Volatile Memory
• Battery power indicator
• The userfriendly PC software "KEW LOG Soft 2" is supplied
• Continuous measuring time:Approx. 10 days (Alkaline Battery)

TRUE RMS USB External

Power Meter

KEW 6305
KEW 6305

• Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
• Voltage, Current, Power Factor and Frequency measurements
• Power analysis (Active, Apparent and Reactive power)
• Energy analysis (Active, Apparent and Reactive power)
• Active power accuracy: ±0.3%rdg±0.2%f.s.
• Automatic wiring check function to prevent incorrect connections
• Large memory capability (2GB) using built-in SD card interface
• Real time & remote measurements using Android application
• synchronous measurements between two units of KEW 6305
• Wide selection of clamp sensors allow measurements from 0.1A to 3000A
• The instrument automatically recognizes what kind of clamp sensor is connected to it
• Windows software for data analysis and setting via USB port or Bluetooth

TRUE RMS USB Bluetooth External

Power Quality Analyzer

KEW 6315
KEW 6315

• Simultaneous Power & Power quality measurements
• Helpful support functions
• Measurement with high accuracy
• Remote monitoring on PC and Android device
• Various Clamp Current Sensors
• Energy consumption check on site
• IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V

TRUE RMS USB Bluetooth External

Ior Logger

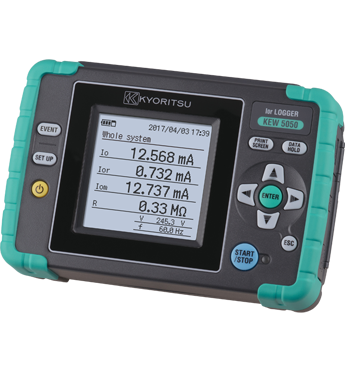

KEW 5050 - Unpreceded Ior Logger!

• Provides simultaneous measurements and logs up to 4 channels
• Supports various wiring systems (Single-phase 2&3-wire, Three-phase 3&4-wire)
• World’s fastest 200ms interval for leakage current measurement
• Offers both traditional leakage / load current measurements
• Large graphic display and magnet on the back case to attach it on metal enclosures



Clamp Power Meter

KEW 2060 BT
Extremely large jaw with tear drop shape:
ideal solution for busbar and large currents!

・Conductor size φ75mm and busbar of 80×30mm or less
・Current up to 1000A rms
・Voltage up to 1000V rms
・Harmonics up to 30th
・Phase rotation
・Bluetooth communication functions

CAT4　600V TRUE RMS Φ75 Backlight Bluetooth
