Keithley Potentiostats

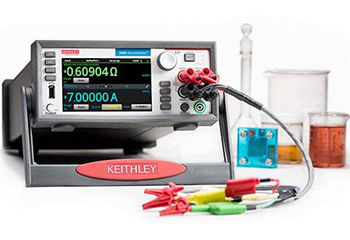

| The 2450-EC, 2460-EC, and 2461-EC Potentiostats are flexible, low-cost, and ideal for research and development in fundamental electrochemical lab research, characterizing next generation materials and electrolytes, new energy storage devices, and faster, smaller sensors. The potentiostats include everything you need for electrochemistry testing, including cyclic, squarewave, or galvanic voltammetry, chronoamperometry, and chronopotentiometry. |  |
Features |
Benefits |
| Perform cyclic, squarewave, or galvanic voltammetry, chronoamperometry, and chronopotentiometry | Lower cost alternative to potentiostats |
| Simplified user interface | Accelerates test setup by as much as 50% |
| Real-time plotting of voltammograms on the front panel | Expedites test analysis and time to answer |
| Analytical graph cursors | Allow immediate analysis of results without a computer |
| Built-in scripting language | Create libraries of reusable, customizable experimental software |
| Screen capture function | Supports copying test results from the display to reports |
| 10nV and 10fA measurement sensitivity | Enables low voltage and low current measurements with confidence |
| Front panel input banana jacks; rear panel input triaxial connections | Convenient; saves money on additional adapter accessories |
| Context-sensitive help function | Minimizes the learning curve |
| Front-panel USB 2.0 memory I/O port | Facilitates transferring data, test scripts, or tests |
| Model | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power | |
|---|---|---|---|---|---|---|
| 2450-EC | 1 | 1A | 200V | 10fA/10nV | 20W | |
| 2460-EC | 1 | 7A | 100V | 10pA/100nV | 100W | |
| 2461-EC | 1 | 10A | 100V | 50pA/5nV | 100W |
